HiLine HE Slimline Gas Fire



  • Control options: Manual Control    Slide Control    Remote Control
  • Heat Output:  High 3.5kW   Low: 2.1kW
  • Heat Input:  High 6.2kW   Low: 4.0kW
  • Gas Type:  Natural Gas
  • Fuel Bed: Coal Effect     Pebble Effect    Log Effect
  • Flue Suitability:  Class 1     Class 2     Pre-cast      Powerflue

Available with a large selection of fire fronts and trims to give the ultimate choice of how you want your fire to look.



Description

The Trent HILINE HE Slimline is a mid-depth gas fire which has been designed for installation into Class 1, Class 2 and pre-cast flues while still retaining a realistic and full fuel bed. In addition to these installations, the Slimline is available as a Powerflue. The huge range of trims and fire fronts that have been designed to compliment this fire are shown on pages 26-29 giving an almost endless range to choose from putting you in the driving seat when it comes to exactly how you want your fire to look.



Contemporary & Profile Fascias

The Contemporary and Profile Fascias are a further option for the HiLine range of fires. These fascias are one piece and the colour options are as seen below. All of the fascias can be ordered as 3 sided version (as seen) or as a 4 sided version to fit a ‘Hole In The Wall’ installation.



HiLine & Evoke Trim Options

There is a huge choice of trim options available for the HILINE and Evoke range of fires. Trent Fireplaces pride themselves on giving you exactly what you are looking for and allowing you to custom finish your fireplace to your desired look.

Not only can you choose exactly how you want your fire to look but if you want a change or to update your look simply clip on a new trim in another colour finish without the need to get an engineer out to alter the fire. Simply clip on the base trim with the supplied magnets and then add another DUO or OUTER trim of your choice.

Base Trims


These trims are fitted to the Trent HILINE range of Gas Fires. The base trim can be fitted on its own as seen or have an additional trim (Duo or Outer) added to it, see below.

The Base Trim comes in a choice of 5 colour finishes. The base trims are 55mm wide on the front face and 16mm deep.



Duo Trims


Duo Fireplace TrimsThese trims are fitted on top of the Base Trim with magnets allowing easy removal if required.  There is a choice of 5 colour options. The Duo trim is 30mm wide on the face and sits centrally over the base trim.

It is 4mm thick so sits flat on the base trim.



Outer Trims


Outer Trim

These trims are fitted on top of the Base Trim with magnets allowing easy removal if required. There is a choice of 5 colour options.

The Outer trim is 35mm wide on the face and wraps around the outer edge of the base trim is 20mm deep.




HiLine Fire Front Options

There is also a huge choice of Fire Fronts available for the HiLine range of fires. Trent Fireplaces pride themselves on giving you exactly what you are looking for and allowing you to custom finish your fire to your desired look. Not only can you choose exactly how you want your fire to look but if you want to change it to update your look simply remove the existing fire front and replace with another of your choice without the need to get an engineer out to alter the fire.



HiLine Gas Fire Control Options

The HiLine gas fire has three control mechanisms to suit customers needs and requirements. Handheld remote control, optional ribbed interior slide switch control located on the side of the trim at the top and manual rotary control.

HiLine Gas Fire Control Options
Hand Held Remote Control

Hand Held Remote Control

Manual Rotary Control

Manual Rotary Control

Slide Switch Control

Slide Switch Control



Chimney and Flue Options

Class 1 Flue
Class 1 Flue Class 1 Flue A Class 1 chimney is usually identified by a 7” or greater diameter flue. The Existing chimney must be structurally sound.
Class 2 Flue
Class 2 FlueClass 2 Flue A Class 2 flue is generally present in an older house where the existing chimney has been lined by a proprietary steel flue or a newer house with a steel flue built in. This chimney type is identified by a 5” diameter flue and a steel flue terminal.
Pre-cast Flue
Pre-cast FlueA Pre-Cast flue is generally found in later properties (1960 onwards) that have a pre-cast concrete chimney system. This is identified by a rectangular box section flue and a terminal as illustrated.
Power Flue
Power fluePower Flue fire expels the flue gases directly outside the building through the use of an electronically driven fan unit mounted on the external wall. A clever pressure switch monitors the performance and automatically shuts off the fire in the unlikely event of operation failure.
Balanced Flue
Balanced FlueBalanced Flue fire vents directly outside through a horizontal coaxial pipe (one pipe within a larger pipe). The outer pipe draws air in from the outside and the inner pipe expels combustion gases. No electricity supply is required for Balanced Flue fires.

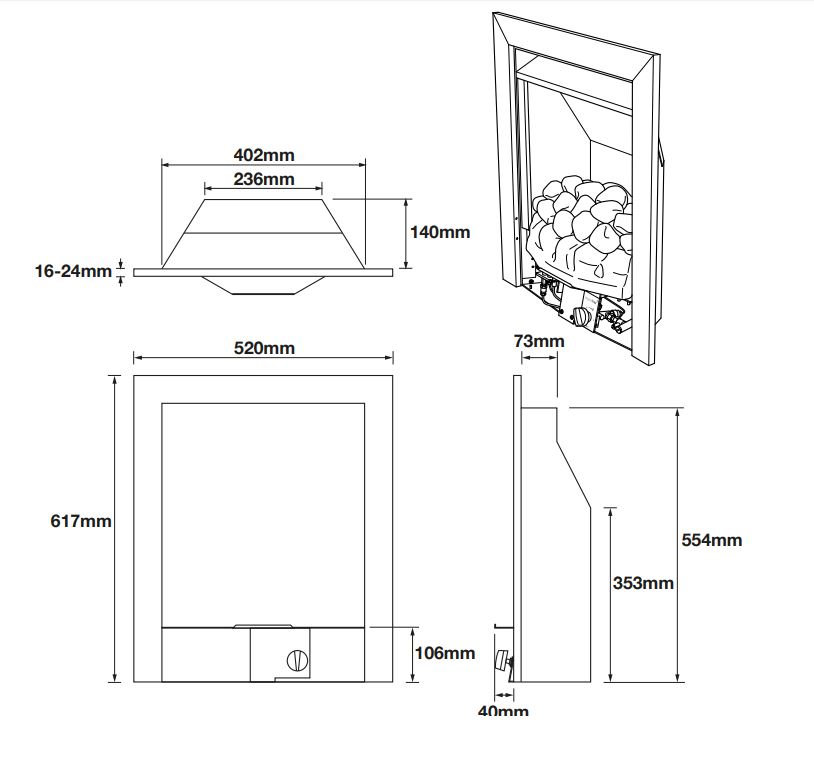

HiLine HE Slimline Gas Fire Dimensions



  • Controls Manual – Slide Control – Hand Held Remote Control (Powerflue version Manual only)
  • Heat Output High 3.5 kW Low 2.1 kW
  • Heat Input High 6.2 kW Low 4.0 kW
  • Gas Type Natural Gas
  • Options: Pebble Effect Fuel Bed
  • Log Effect Fuel Bed
