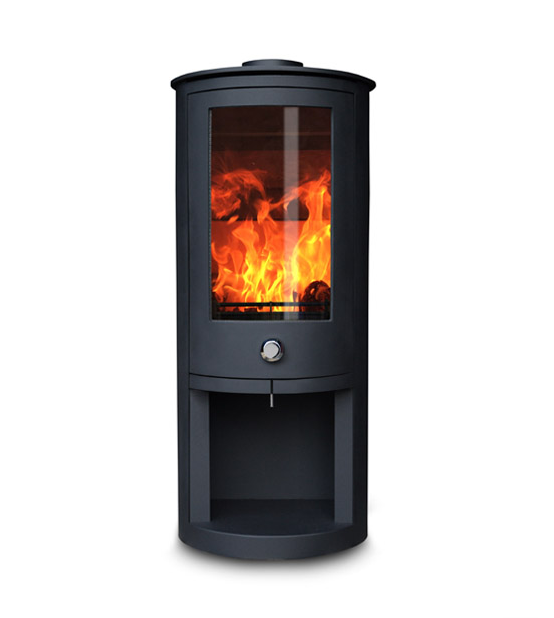

ZETA 5 Log Store (4-6kw) Wood Burning Stove

NEW 2016 MODEL – The contemporary and stylish Scandinavian design style of the Zeta 5L will enhance any home. The Zeta 5L is an elegant round steel multi-fuelled stove. With the large panoramic single curved door with an integrated flush handle, the fire is visible from most angles within any room.

  • Cast Iron DoorList item
  • Larger Curved Glass Window
  • Adjustable Handle
  • Removable Top Plate
  • Side Window Option

The Zeta 5L is British manufactured out of the finest materials to the very highest standards and conforms to BS EN 13240 and is “Defra Pending” for use in smokeless zones. With a nominal heat output of 4.9kW on wood and 4.1kW on smokeless fuels, this stove can be installed without the need of any additional ventilation. It has a maximum heat output of 6.0kW. and provides both radiant and convected heat.

The Zeta 5L has a fully controllable Eco-Cleanburn air management system with primary, secondary and tertiary air for a superior burn. This system provides the stove with an excellent air wash system which keeps the glass clean and also a tertiary burn (wood only) for super clean burning thereby protecting the environment for future generations.

Features:

  • British Made contemporary Scandinavian design style multi fuel stove
  • Panoramic single door with large viewing area for maximum view of the fireList item
  • Multifuel Stove – Nominal heat output Wood 4.9kW and Smokeless Fuel 4.1kW
  • Maximum heat output of 6.0kW
  • 125mm (5 inch) top flue outlet
  • Pre-heated air wash system for cleaner glass
  • Eco-Cleanburn air management system for greater efficiency
  • Removable ash pan
  • Can be installed on a 12mm glass hearth without the need of additional hearth construction
  • External air inlet for use in low energy homes
  • Pre stressed steel body for superior strength
  • 77.7% efficiency (smokeless fuel) 76.4% efficiency (wood)
  • 10 year warranty

ZETA 5 LOG STORE (4-6kw) Dimensions:

Model: ZETA5L
Height: 1050mm
Width: 470mm
Depth: 470mm
Weight: 140kg
Material: Plate Steel, Ceramic Glass & Vermiculite
Heat Output: 4 – 6kW Variable
Flue Outlet: Top Exit – 125mm diameter (To suit 5″ flue)
Fuel Type: Multi-Fuels – Wood burning & smokeless fuels
Log Length: 250mm
Log Store: Yes
Efficiency: Smokeless Fuel @ 4.1kW – 77.7%
Wood @ 4.9kW – 76.4%
